10" Subwoofer
MAX Power: 1400 Watts
RMS Power: 700 Watts
Impedance: 2-Ohm 2.5" DVC
Ferrite Magnet
81dB

SPECS
SKU
ZR10.2D
Nominal Diameter
10" / 254mm
Nominal Impedance
2 + 2 Ohm
RMS Power Handling
700W
Maximum Power Handling
1400W
Sensitivity (1w/1m)
81 dB
Frequency Response
27Hz-200Hz
Recommended Lo Pass Crossover
100Hz
MOTOR
Voice Coil Diameter
2.5" / 61.6mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Ferrite
Magnet Weight
100 Oz
Displacement Volume
0.05 ft3
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
8.26 L
Free Air Resonance Fs
34 Hz
Mechanical Factor Qms
4.3
Electrical Factor Qes
0.8
Total Factor Qts
0.67
Moving Mass Mms
252g
Compliance Cms
53.37? m/N
Bl Factor BI
8.78
Voice Coil Inductance Le
546.4m mH
Cone Area Sd
333.29 Cm2
DC Resistance Re
1.8 + 1.8 Ohm
Efficiency Bandwidth Product EBP
42.5
MEASUREMENTS
Overall Diameter
10.31" / 262mm
Overall Depth
6.92" / 176mm
Front Mount Baffle Cutout
9" / 229mm
Mounting Depth
6" / 152.3mm
Motor Diameter
6.1" / 155mm
Gross Single Unit Weight (lb)
17.5
Dimensions W x L x H (Inches)
11.5 x 11.5 x 8.25
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
36
M/C Dimensions W x L x H (Inches)
12.25 x 12.25 x 17.75

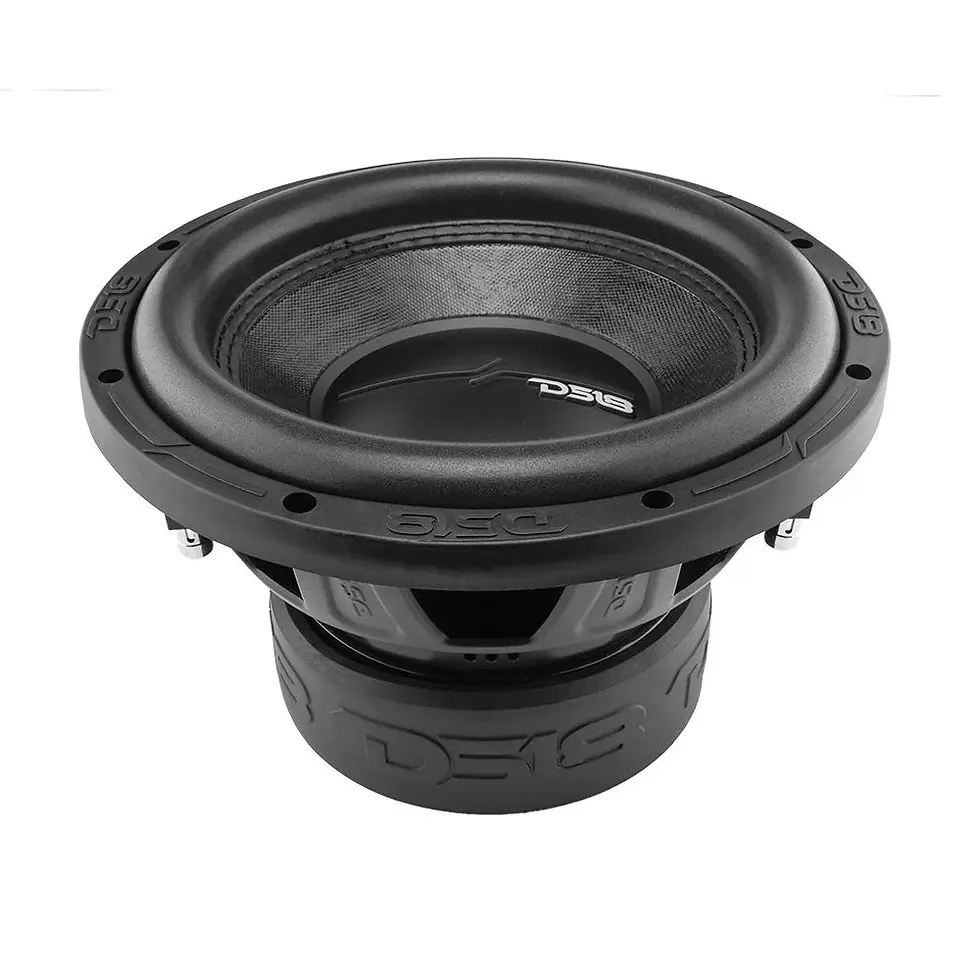

Introducing the DS18 ZR10.2D, a true powerhouse designed to deliver mind-blowing bass and precision performance.
The ZR subline is renowned for its exceptional performance, and the ZR10.2D is no exception. With a robust 1400W of MAX power handling and 700W of RMS power handling, the ZR10.2D guarantees a spine-tingling audio experience that will leave you craving for more. Its 2.5-inch high-strength aluminum voice coil ensures that every note is delivered with precision and clarity, elevating your car audio system to new heights. Its 2+2 ohm dual voice coil configuration allows you to match your amplifier's optimal impedance, providing maximum power transfer and efficiency.
With DS18’s ZR10.2D, you don't just get exceptional performance; you also get unmatched style and unbreakable durability. The ZR10.2D features a strong stamped basket that not only provides structural integrity but also showcases show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. Its matte black finish adds a touch of elegance, making it a visually stunning addition to any car audio setup.
With a frequency response ranging from 27Hz to 200Hz and a sensitivity of 81 dB, the ZR10.2D captures every nuance of your music, delivering it with crystal-clear precision. The recommended low-pass crossover of 100Hz ensures seamless integration with your existing audio system, allowing your music to shine in all its glory.
With its striking design, exceptional performance, and versatility, the ZR10.2D is the perfect choice for car audio enthusiasts who demand nothing but the best.
