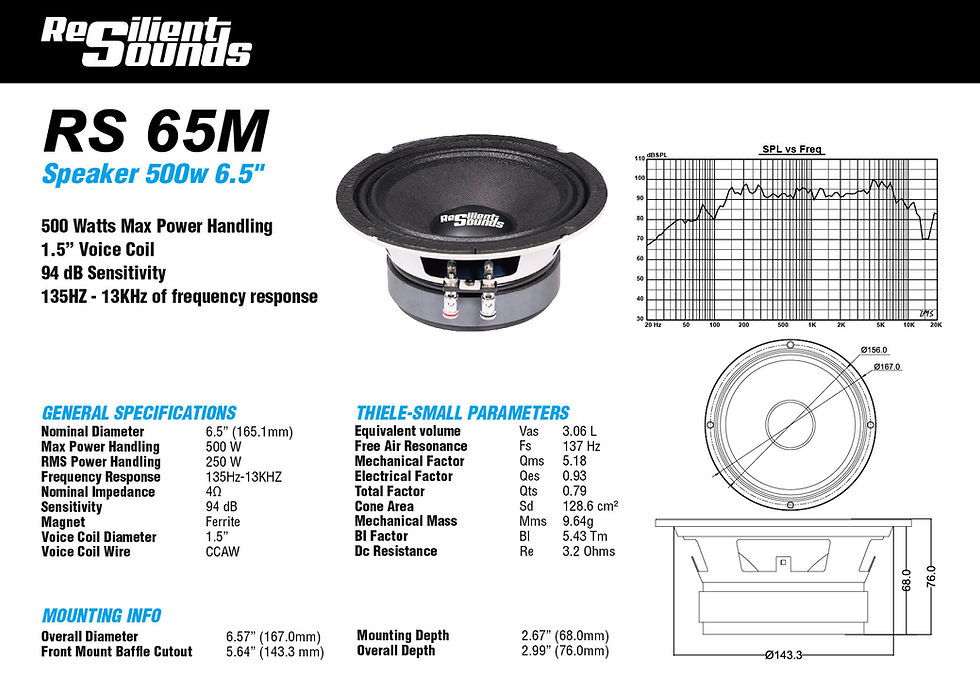

RS 65M

 500 Watts Max Power Handling

1.5" Voice Coil

94 dB Sensitivity

135HZ-13KHz of frequency response

GENERAL SPECIFICATIONS

Nominal Diameter          6.5” (165.1mm)
Max Power Handling      500 w
RMS Power Handling     250 w
Frequency Response      135Hz-13KHZ
Nominal Impedance       4ohm
Sensitivity                         94 dB
Magnet                              Ferrite
Voice Coil Diameter        1.5"
Voice Coil Wire               CCAW
THIELE-SMALL PARAMETERS

Equivalent Volume         Vas        3.06 L
Free Air Resonance        Fs           137 Hz
Mechanical Factor          Qms      5.18
Electrical Factor               Qes       0.93
Total Factor                     Qts        0.79
Cone Area                        Sd          128.6cm²
Mechanical Mass            Mms     9.64 g
BI Factor                           BI           5.43 Tm
Dc Resistance                  Re          3.2 Ohms

MOUNTING INFO

Overall Diameter                          6.57”(167mm)
Front Mount Baffle Cutout          5.64"(143mm)
Mounting Depth                           2.67"(68mm)
Overall Depth                                 2.99"(76mm)
