Key Features
1 Channel Subwoofer Monoblock
Class D
1 ~ 4 Ohm Stable
1 x 300 Watts @ 1 Ohm
Power/Protection Indicator
Ultra Compact Design

SPECS
SKU
X1
Class
Class-D / Digital
Channels
1
Total Watts Peak
900W
RMS Power @ 4 Ohm
140W x 1 CH
RMS Power @ 2 Ohm
220W x 1 CH
RMS Power @ 1 Ohm
300W x 1 CH
Frequency Response
20Hz-500H
Signal/noise Ratio
>90 dB
Efficiency @ 4 Ohm
>80%
SPECS
Damping Factor
>200
THD %
<0.2%
Low Level Input Range
0.2-5V
Selectable X-Over
Fixed LPF
X-Over Filter Range
50HZ-250Hz
Bass Boost Range
0-18 dB
Bass Boost Frequency
40 Hz
Infrasonic Filter
10-55Hz
Phase Selector
0 - 180 Degrees
Minimum Impedance
1 Ohm
SPECS
Led Indicator
Power/Protection
Power Input Size
12 GA
Fuse Rating
30 A

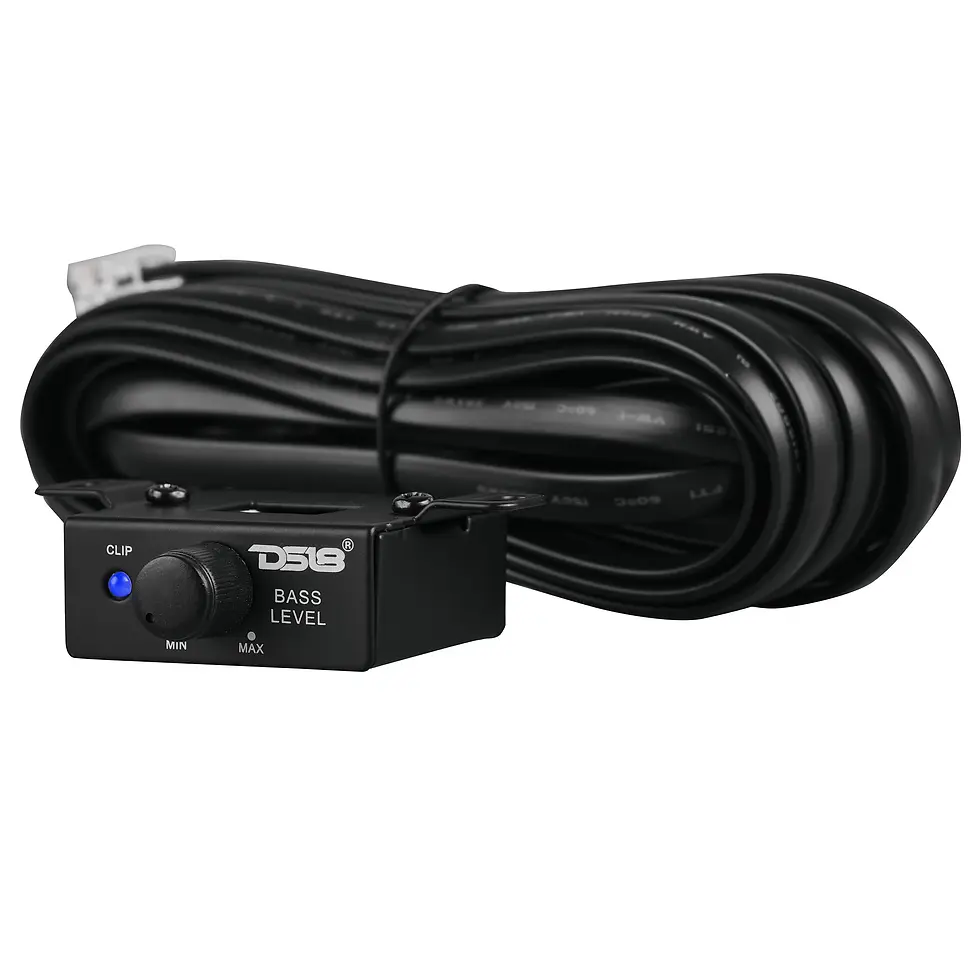

Remote Level Control
Yes - Dash Mount
Thermal Protection
Yes
Over-load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Dimensions L x W x H (inches)
5.54 x 3.24 x 1.37"

Ultra Compact Monoblock Class D 1-Channel Car Amplifier 900W
DS18’s X1 defies expectations by combining mind-blowing power with an incredibly compact design.
Featuring some of our smallest dimensions for an amplifier, DS18’s X1 effortlessly finds its place in even the tightest of spaces. Imagine the possibilities: you can now install multiple X series amps in any of your custom builds, daring you to complete the audio system of your dreams, all securely tucked away. Embrace your sound without compromising on size or power.
Don't let its size deceive you. The X1 delivers an astonishing amount of power for its compact size, making it an exceptionally versatile amplifier suitable for a wide range of applications. DS18’s X1 unleashes an astonishing output of 140W at 4 ohm. But that's just the beginning. When the impedance drops to 1 ohm, the X1 releases an even mightier 300W RMS. Enough pure power to bring your music to life with unparalleled vitality.
Experience the peace of mind that comes with the X1's stability and reliability. This amplifier is built to endure, with a four-layered traces PCB design, surface mount component technology, and audio precision quality control verification. DS18 leaves no stone unturned when it comes to ensuring top-notch performance.
With easily adjustable filters, the X1 makes it a breeze to fine-tune your audio system. Effortlessly achieve the perfect balance for your subwoofers with the X1’s fixed LPF, resulting in an immersive audio experience tailored to your unique preferences.
DS18’s X1 is a gateway to audio excellence — taking you on a journey you'll never want to end.
