Subwoofer Enclosure
1 X 10"
RMS Power: 300 Watts(600 Watts Peak)
Impedance: 4 Ohm ~ 86dB
5/8" MDF with Black Carpet
Shallow Down Firing

SPECS
SKU
EN-DF10
Speaker Type / Size
10" Passive Subwoofer
Total Impedance
4 Ohm
Total RMS Power Handling
300W
Total MAX Power Handling
600W
Sensitivity (1w/1m)
86dB
Frequency Response
25-250Hz
Recommended Lo Pass Crossover
80Hz
Speaker Specifications
Voice Coil Diameter
1.52" / 38.6mm
Voice Coil Former Material
Aluminum
Winding Material
Cooper
Cone Material
Injection PP Cone
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
40 Oz
Box Specifications
Internal Volume
12L / 0.42ft3
Load Configuration
Single 4 Ohm
Box Type
10" Down-Firing Sealed
Box Material
MDF (5/8" / 15mm)
Finish Material
Black Carpet
-3Db Dropping Point F3
39Hz
Measurement

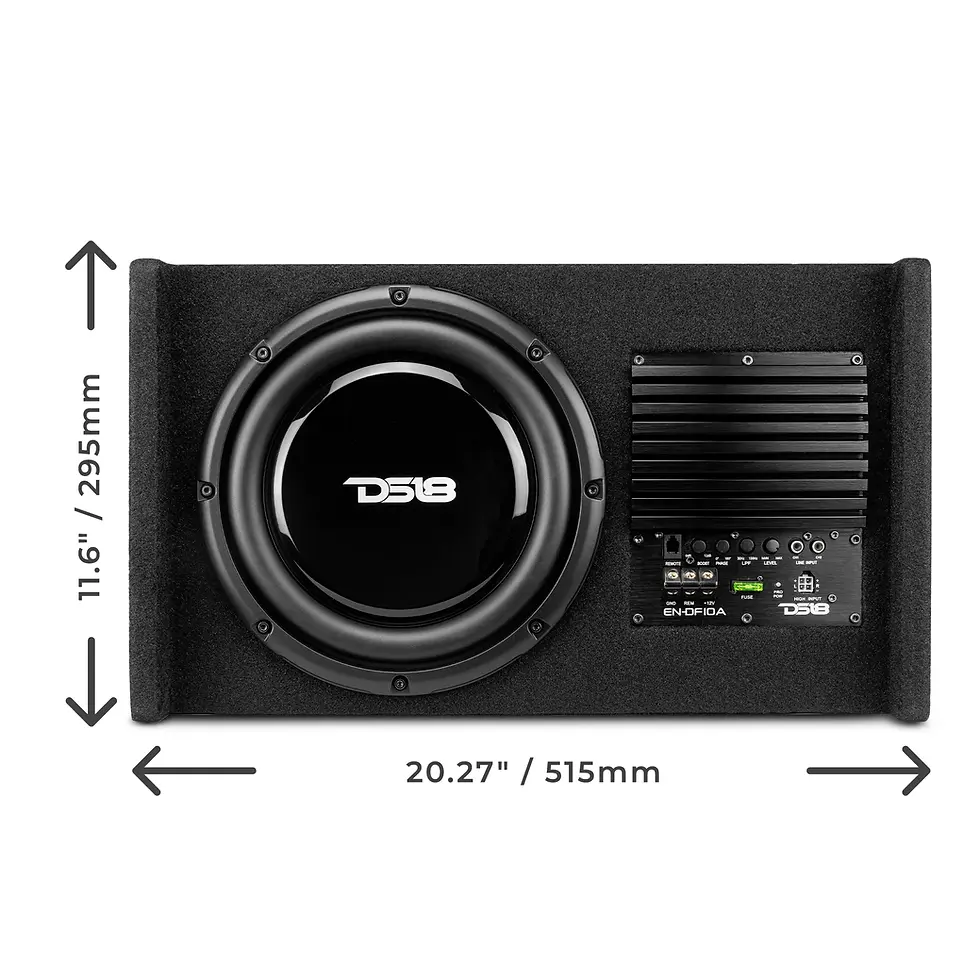

Overall Height
11.6" / 295mm
Overall Width
20.27" / 515mm
Overall Depth
6.3" / 160mm
Gross Single Unit Weight
8.0KG
Single Unit Box Dimensions W x L x H
556mm x 206mm x 314mm
Quantity of Units in Master Carton
1 PCS/CTN
Gross Master Carton Weight
9.2KG
Master Carton Dimensions W x L x H
576mm x 226mm x 335mm
Extra Features
MDF Box for better sound
Yes
High Efficiency Digital Amplifier Built-In
No
Auto Turn-On Function when using Hi-Level Input for easier installation
No
Remote Level Knob to get easy amount of Bass control
No

Introducing DS18’s EN-DF10, the ultimate solution for car audio enthusiasts who crave exceptional bass without compromising on space.
Crafted with precision, DS18’s EN-DF10 is ingeniously designed to deliver mind-blowing bass in vehicles where space is a luxury. Engineered to perfection, this enclosure combines the raw power of a shallow 10-inch subwoofer with compact, down-firing design, measuring a mere 20" x 11" x 6".
The EN-DF10 requires an external amplifier to feed its hunger for power, demanding 300W RMS and reaching an astounding peak of 600W at 4 ohms, ensuring compatibility with a wide range of car audio systems. With a sensitivity of 86dB and a frequency response spanning from 25Hz to 250Hz, every subtle nuance and thumping bassline will be faithfully reproduced. The recommended low-pass crossover at 80Hz guarantees seamless integration with your existing speakers, resulting in a harmonious audio landscape.
But there's more to the DS18 EN-DF10 than just incredible sound. With its very strong (MDF) box, this enclosure further enhances the audio quality, allowing for better sound dispersion and minimizing resonances. While it does not feature a built-in high-efficiency digital amplifier or an auto turn-on function when using Hi-Level Input, its simplicity ensures ease of installation and compatibility with a variety of audio setups.
Prepare to be the envy of enthusiasts everywhere with DS18’s EN-DF10.
